Installation

There are two main ways to install our software. The first is use a native or virtual machine running Ubuntu 22.04, and the second is to use Docker.

Note

If you elect to use Docker, you need to ensure your system has sufficient memory as Docker is not the greatest with RAM management. In particular, it’s recommended that you have at least 8 GB of RAM allocated.

Native/Virtual Machine Setup

We only provide official support for Ubuntu 22.04 due to ROS2. Make sure you are on an Ubuntu 22.04 machine before continuing. For Windows users, using WSL2 with Ubuntu 22.04 will work. The steps to set this up can be found here. For Mac users, Ubuntu 22.04 can be emulated in a virtual machine. For M1 Macs specifically, using the arm64 version of Ubuntu 22.04 with the application UTM has worked in the past. If you need the Ubuntu 22.04 image, see the SW lead.

First, clone the repository from GitHub:

git clone https://github.com/RoboJackets/robocup-software.git

Then cd to the repository you just cloned, and run the setup scripts to install all required dependencies:

cd robocup-software && ./util/ubuntu-setup

To simulate the vision data we’d get from a real field camera setup, we’ll use ER-Force’s simulator. For that, clone their repo, and cd into it. Note, this should NOT be cloned inside the robocup-software repository, so you should cd .. if necessary.

git clone https://github.com/robotics-erlangen/framework.git
cd framework

Then, build their code with the following:

mkdir build && cd build
cmake ..
make simulator-cli

This builds an executable in framework/build/bin. Like any other executable, it can be run with [filepath-to-executable]. Since we’re already in the framework/build/ directory, simply run:

./bin/simulator-cli

You won’t see anything output for this. Note also that the absolute filepath works from any directory:

~/framework/build/bin/simulator-cli

We’re a Division B team, so add the flag -g and the option 2020B to use the Division B field dimensions, like so:

./bin/simulator-cli -g 2020B

Sadly, this program has no output, so when you run it nothing will appear to happen. However, it will become obvious after you start our UI whether or not you’ve correctly started the simulator or not.

Building the Stack

In another terminal, change directories back into robocup-software. Make sure you’re on the most updated version of ros2 branch. This is where the latest working version of our codebase exists. (See Contributing page for more information).

git pull
git checkout ros2

Then, source the ROS setup file. This allows your shell to use ROS commands.

source /opt/ros/humble/setup.bash

If you’re on zsh, source setup.zsh instead. (If you don’t know what zsh is, you’re not on zsh.)

Then build the codebase. If you are running this on your own dedicated Linux machine, you are welcome to simply run:

colcon build

However, if you are on a VM/Docker, then you need to restrict the amount of resources that colcon takes up, by running:

make perf_docker

After building, we need to source our custom ROS setup. Run the following in the robocup-software directory:

source install/setup.bash

(Again, if you’re on zsh, source the .zsh version instead.)

To launch our stack, which contains our AI that sends commands to the simulator, plus a UI to show what’s happening, run the following:

make run-sim

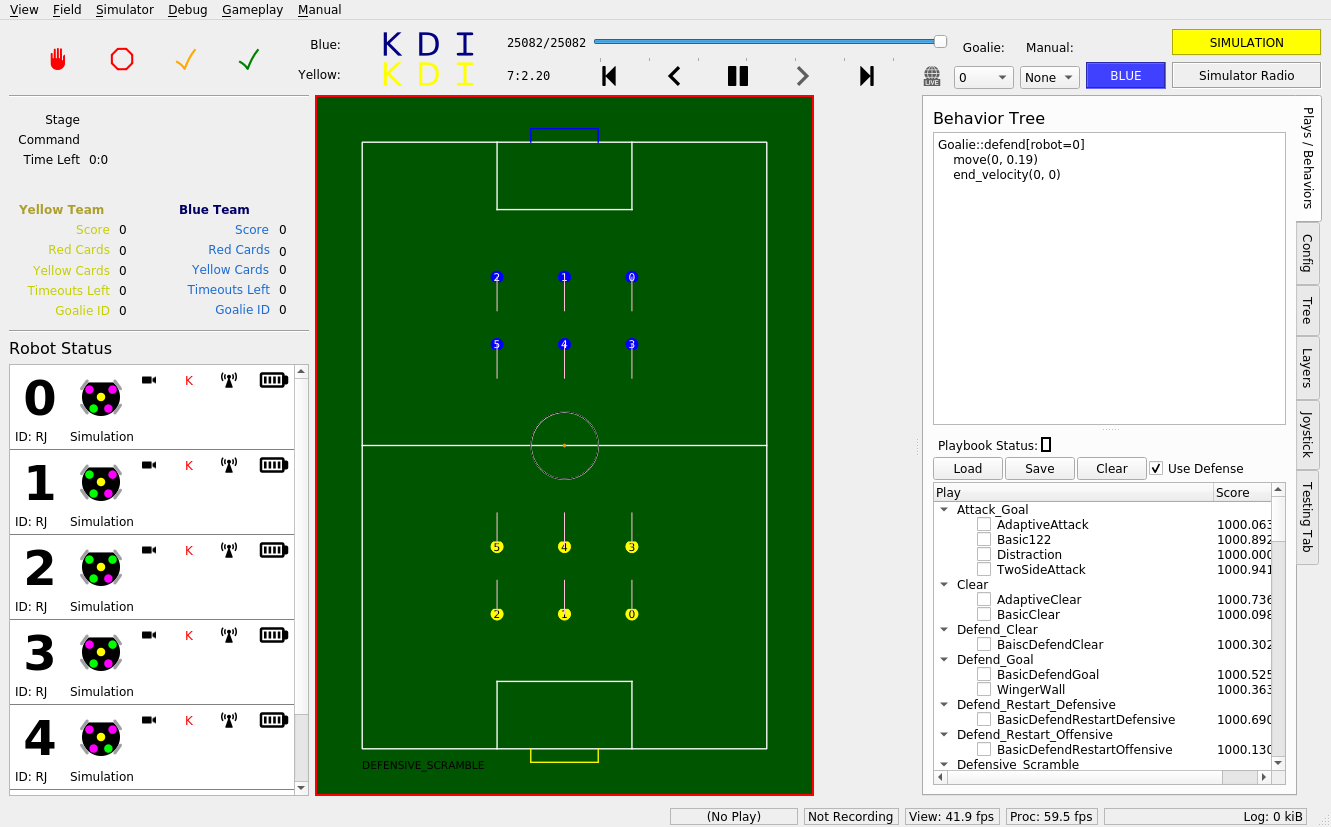

If everything is working properly, you should see the following window show up.

Docker Setup

Instead of using an Ubuntu 22.04 machine, you can also install our software using our Docker image that runs Ubuntu 22.04. The Docker image also has our tech stack and all the dependencies pre-installed with a desktop GUI. The Docker setup should work on any platform (Windows, Mac, ARM, x86, etc.).

The easiest way to get started with Docker is to just download Docker desktop. Note that when using Docker desktop, you will need to have the app open in the background to run your containers. For installation details, see the Docker Desktop Manual.

Once you have Docker installed, please follow the steps for installing and using our RoboCup image at DockerHub.

For the Docker image specifically, you will need to run cd root/robocup-software to get access to the main robocup-software directory that we work in. Once you’re there, head over here to build the stack and run our simulator.

You are also welcome to check out the shortcuts page below once you’ve fully built the stack.

Shortcuts

Now that you know how to source dependencies, build, and run our code, you can take advantage of some neat shortcuts. These shortcuts all depend on the following knowledge:

Sourcing only needs to happen every time a new terminal is opened, and building: needs to happen when C++ or launch.py files are changed.

So, after you’ve built once, the install/setup.bash script will exist in your version of the repo, and you won’t have to build again until you make changes to C++ or launch files. That means the next time you open up a new terminal, you can launch sim with:

. ./source.bash
make run-sim

source.bash is an alias for the two source commands you saw above, and make run-sim will launch both ER-Force’s Framework (the physics simulator) and our stack (ros2 launch rj_robocup sim.launch.py).

To stop this process (like any other) press CTRL-C in the command line. You may have to press CTRL-C twice.

make run-sim

When you make changes to any C++ files, you’ll need to build again to see your changes take effect. If you’ve already built once on your machine, though, you can build again more quickly with:

make again
. ./source.bash

The source.bash line is necessary to source the file in install/, which is refreshed on each build. (Note: this does not build any CMake-related files, so if you’re editing those, use colcon build as usual.)
